Riser Display Base - Circular - 3D print files

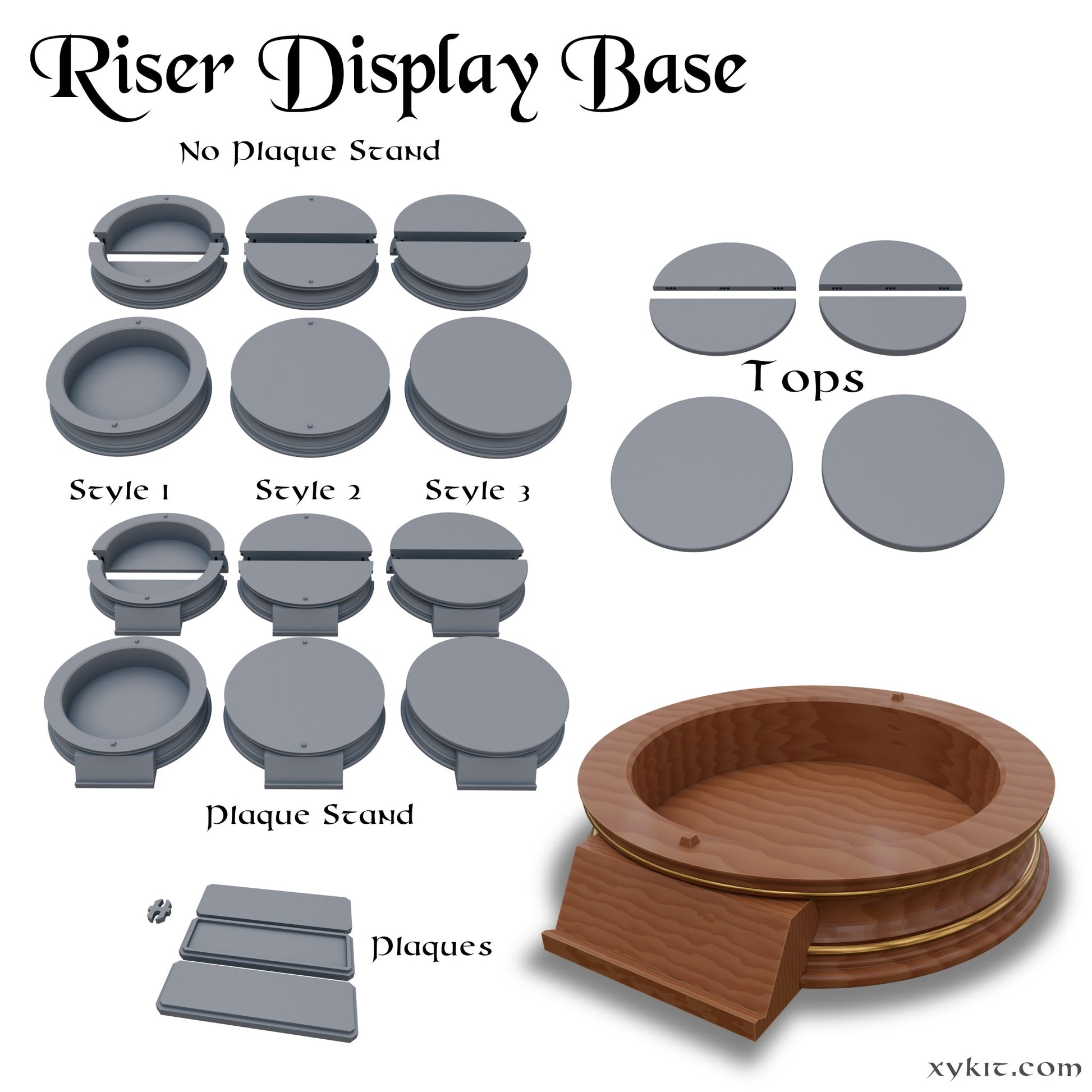

Need a base to show off your models and 3D prints. This Riser Display Base comes with a variety of configurations, hollowed and solid. The split versions can be joined with OpenLOCK clips and glue. (*please note - scaling the split bases is not recommended but can be done if you desire, just be aware that the OpenLock clips may not function properly when scaled.) We recommend gluing the two piece model(s) together with super glue.

Some of the variants have a separate "top" option, should you wish to remove it, or have a hollow interior.

The base is approx. 210mm across. The Plaque version makes the "y" dimension 227mm. It is approx. 43-50mm tall, depending on the variant.

Includes both .3MF and .STL versions for FDM printers. The 3MF Version allows you to print the separate pieces in different / materials on multi-material 3D printers.

The model is designed to print on FDM printers without slicer supports.

Recommended Print Settings

  This model is ideal for FDM printers because of it's large size.

FDM Printers

• Layer Height: .2mm (.12-.16 will give you more details)
• Infill: 10-15%
• Shells: 3
• Supports: None

Resin Printers

   This model can be printed on a resin printer granted your printer is larger enough and you have some experience with resin printing. It has not been tested on resin machines and may require extra set-up.

OpenLock

   OpenLock by "printable scenery" use a pre-cut joint to join models together with clips. The joints themselves have built in support material that can be removed with pliers or a screwdriver.

*digital item, you will receive the .stl files to 3D print the included models yourself. No physical product will be shipped.

**This item is for personal use. If you are interested in a merchant license, please contact us.

A merchant license may be purchased to sell physical 3D printed versions of the designs. For more information, please CLICK HERE.
