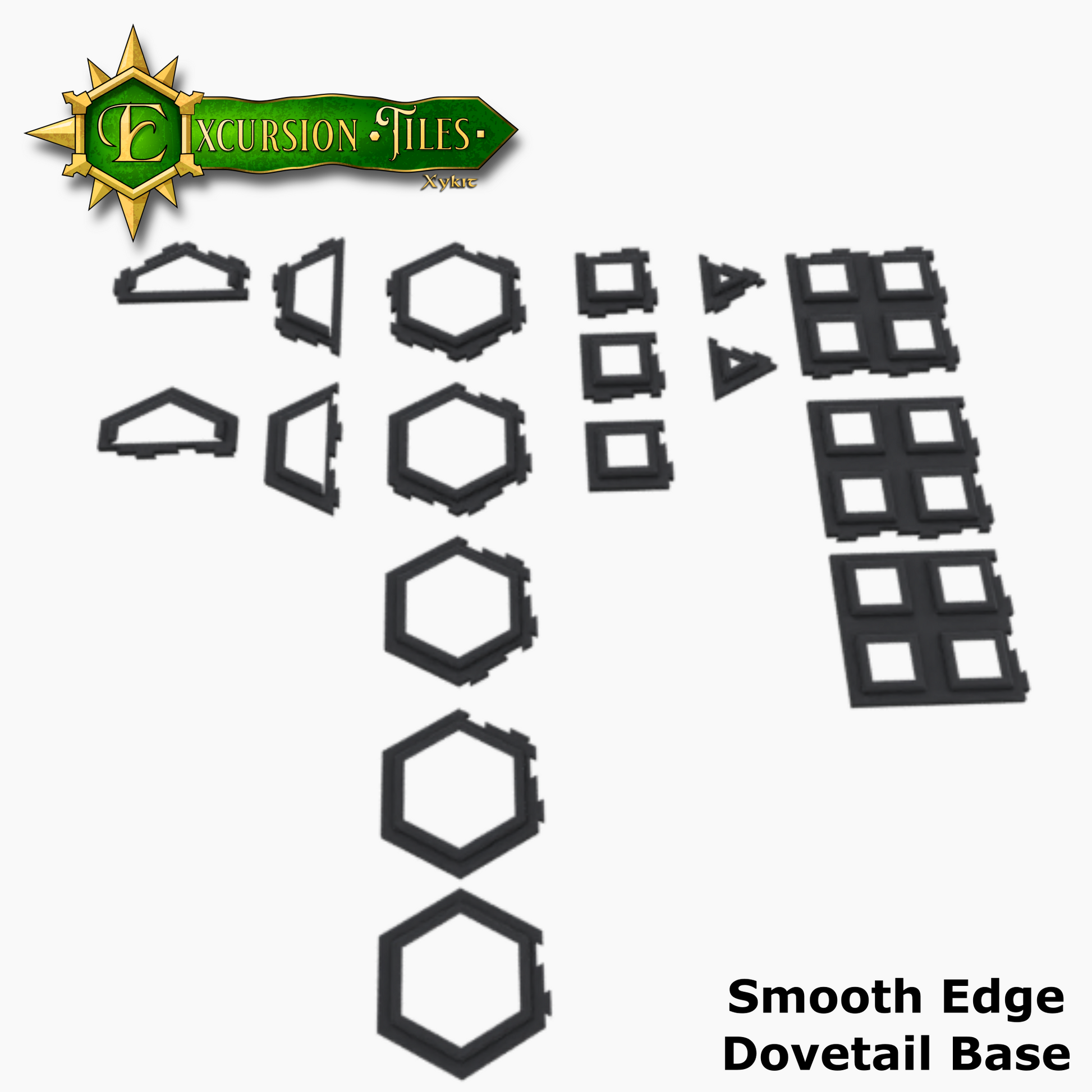

Smooth Edge - DOVETAIL - Base Grids for Excursion Tiles

This is the smooth edges variant of the Dovetail Base Grids set for Excursion Tiles

This set include just a few variants of the Dovetail Base grids in case you don't want the base joints to show on the final edges of your grid.

Check Out Excursion Tiles HERE

Recommended FDM Print Settings:

Excursion Tiles print without the need for slicer supports. There is a small bit of "bridging" that occurs under the tiles so make sure that the bridging angle is the shortest possible. It is also important to have good bed adhesion without excessive elephant foot (squashing on bottom edges).

• Nozzle: .4mm
• Layer Height: .2mm (thinner layers, or adaptive layers will give finer details.)
• Elephant foot compensation may be helpful (0.25 - 0.5mm) the underside of the tiles need to print cleanly
• Infill: 8-10% (I typically prefer gyroid)
• Shells: 2-3 (more shells will provide stronger parts))
• Supports: NONE

*Digital FILES only, no physical product will be shipped

**For MERCHANT LICENSE info CLICK HERE
