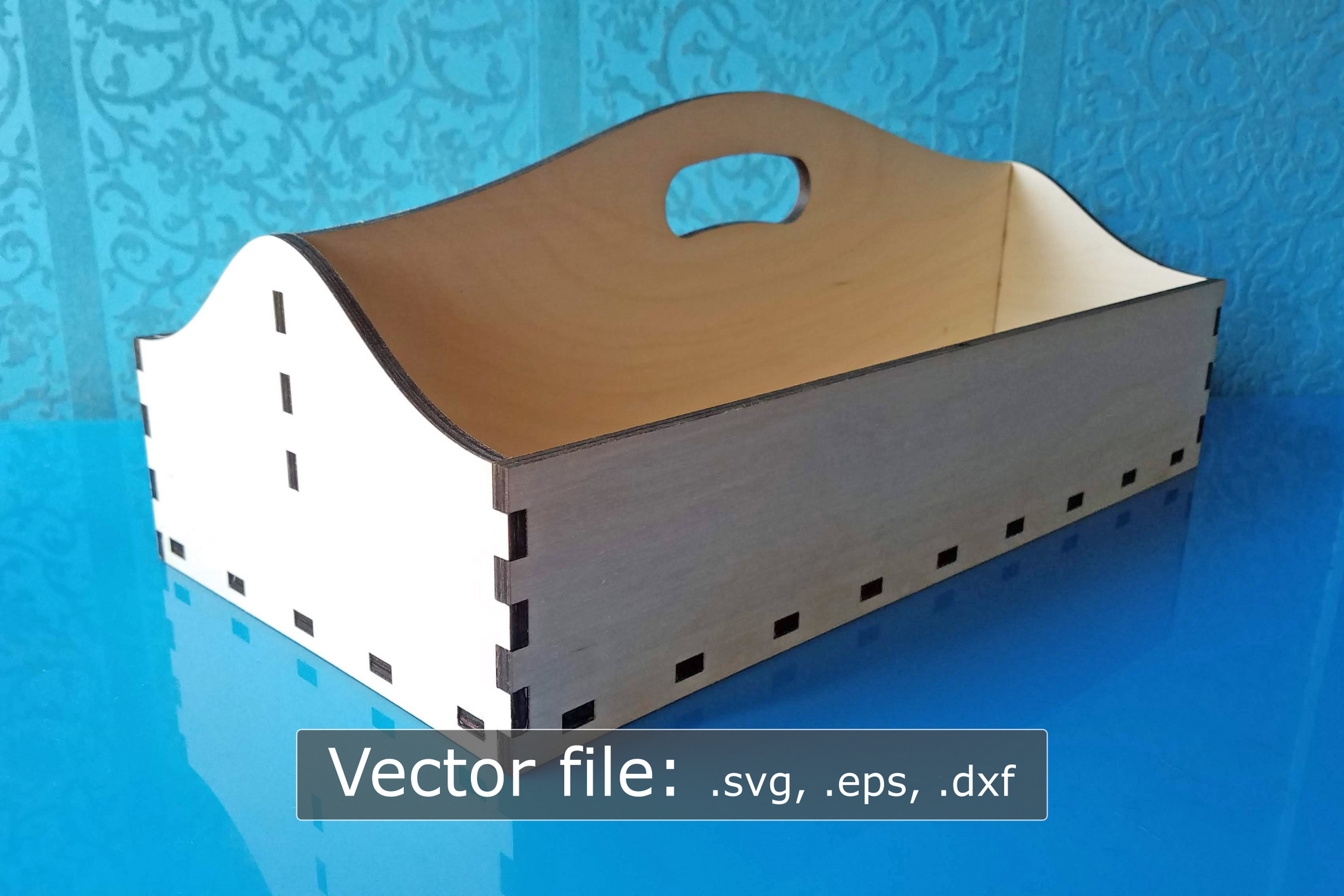

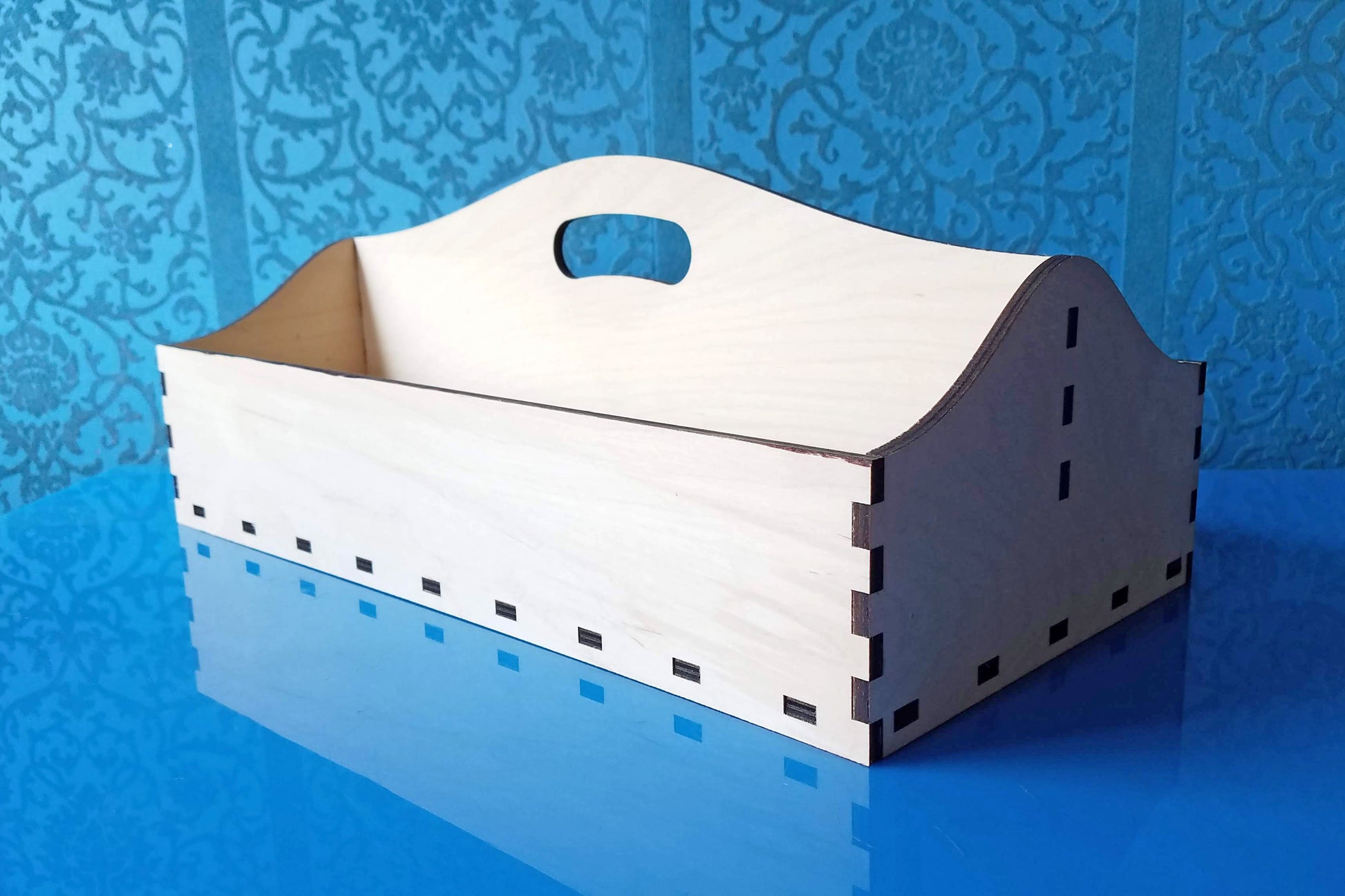

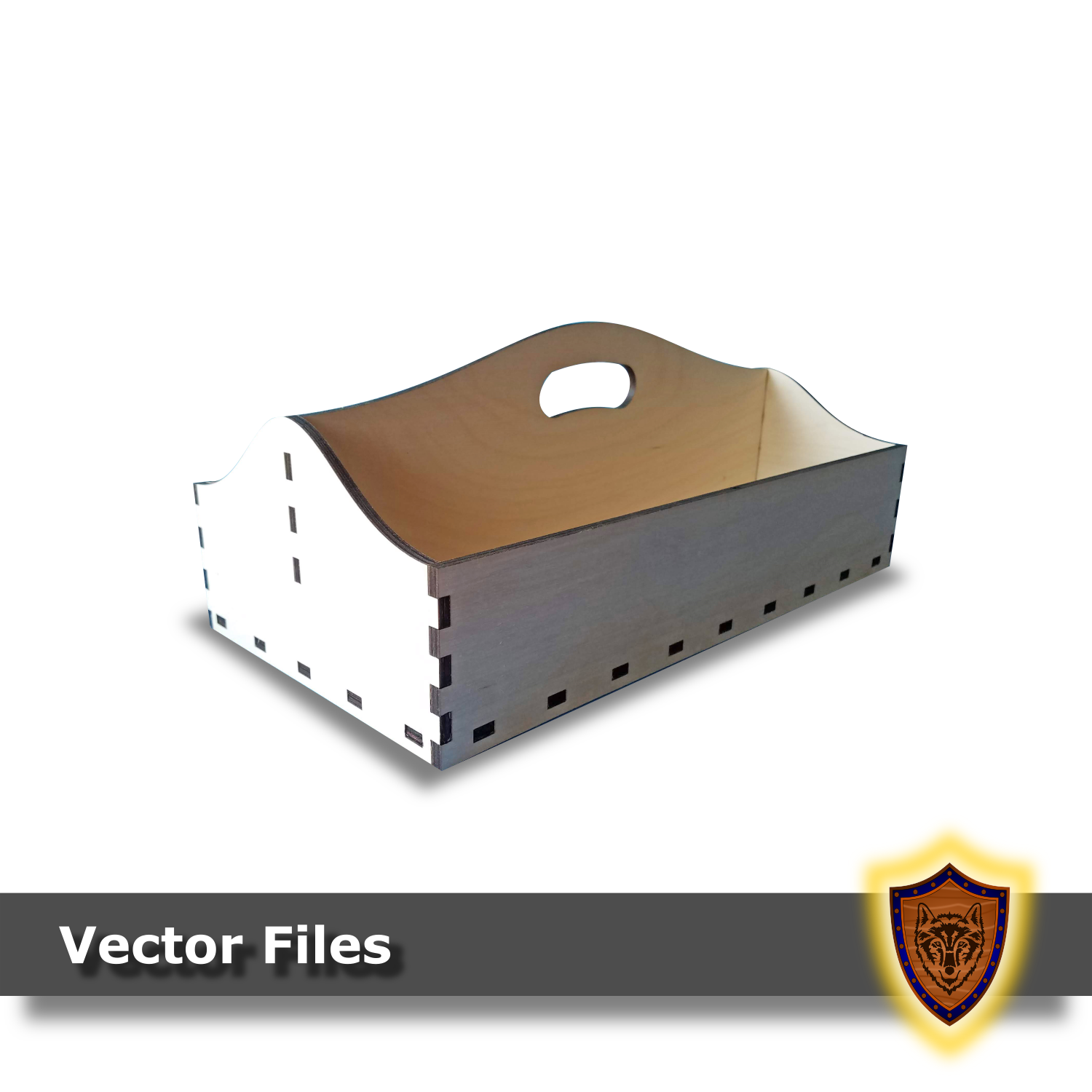

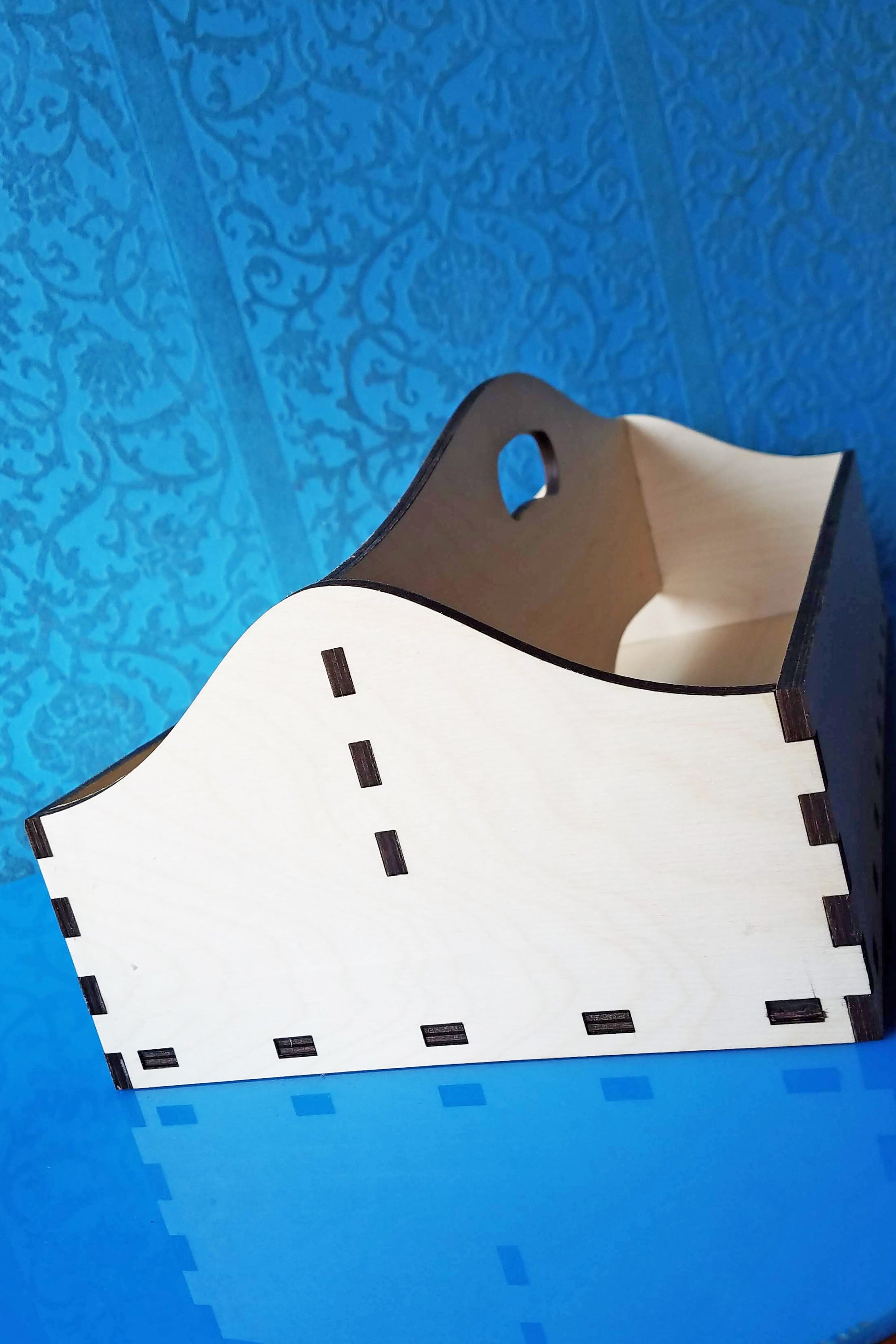

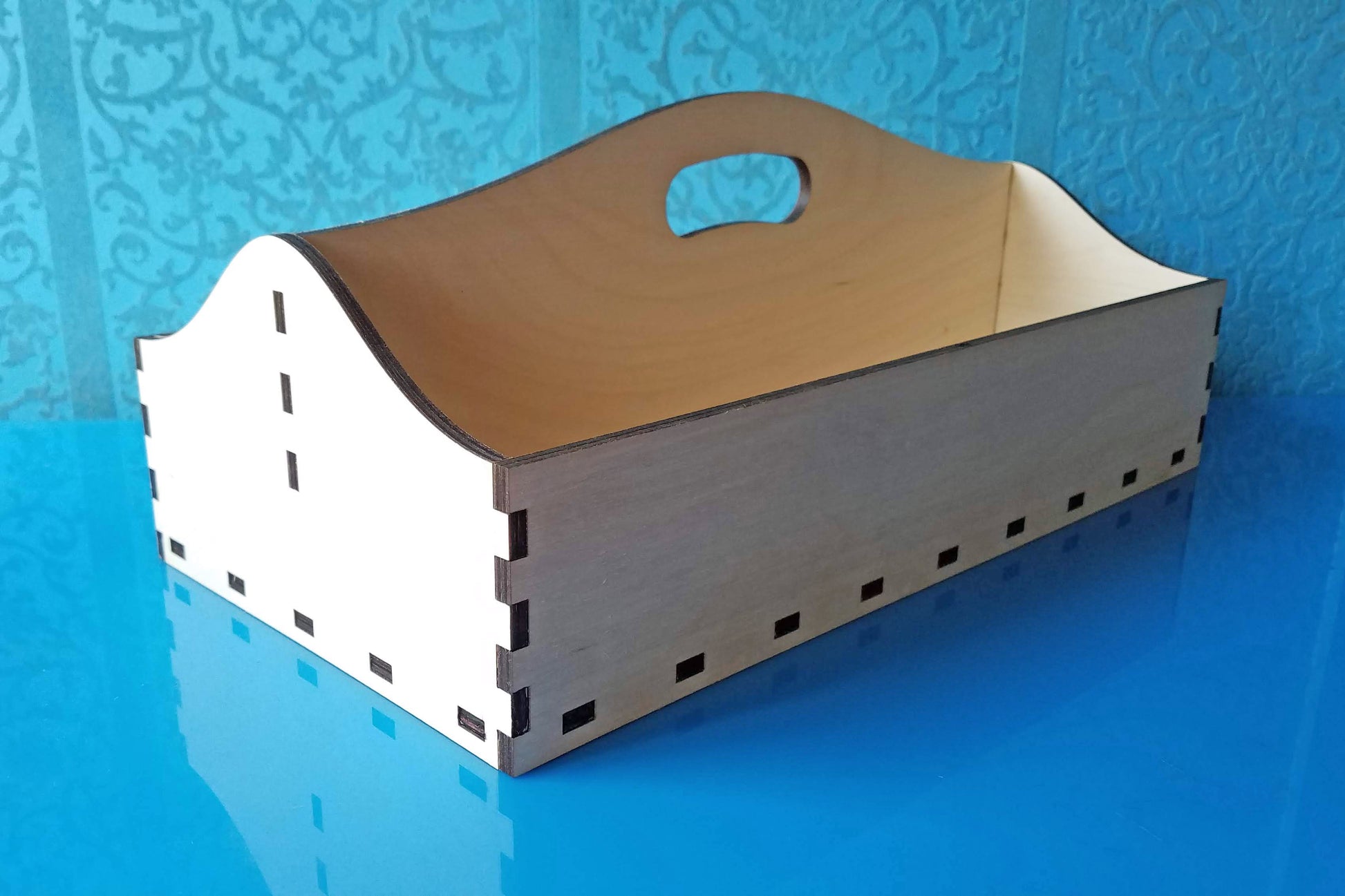

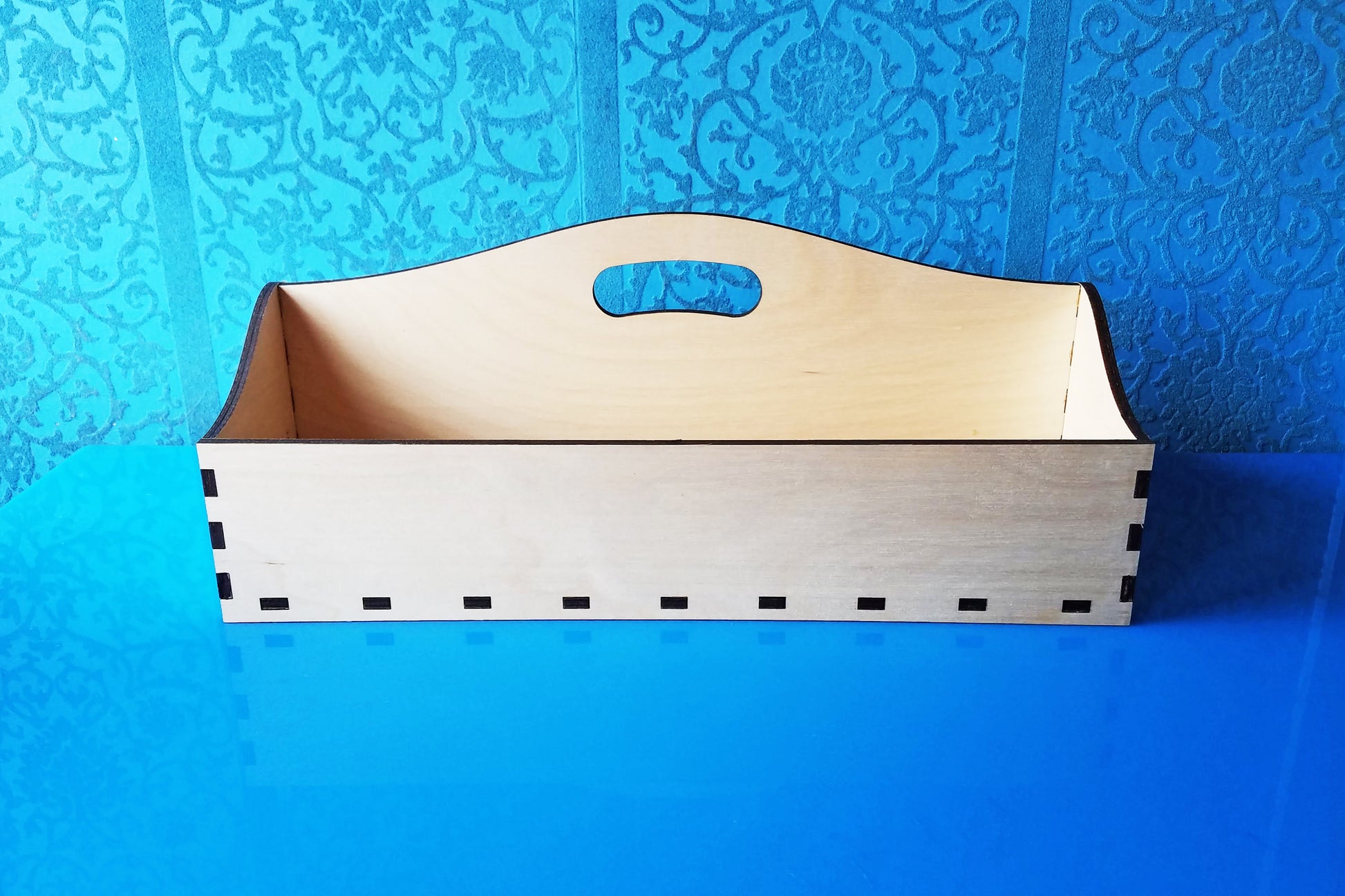

This listing is the digital files for cutting and making your very own laser cut tool box. You will receive .zip files with the .svg, .eps and .dxf. The trays are designed to use 6mm thick material. For best results lightly sand your pieces after cutting and use glue to add extra strength to joints.

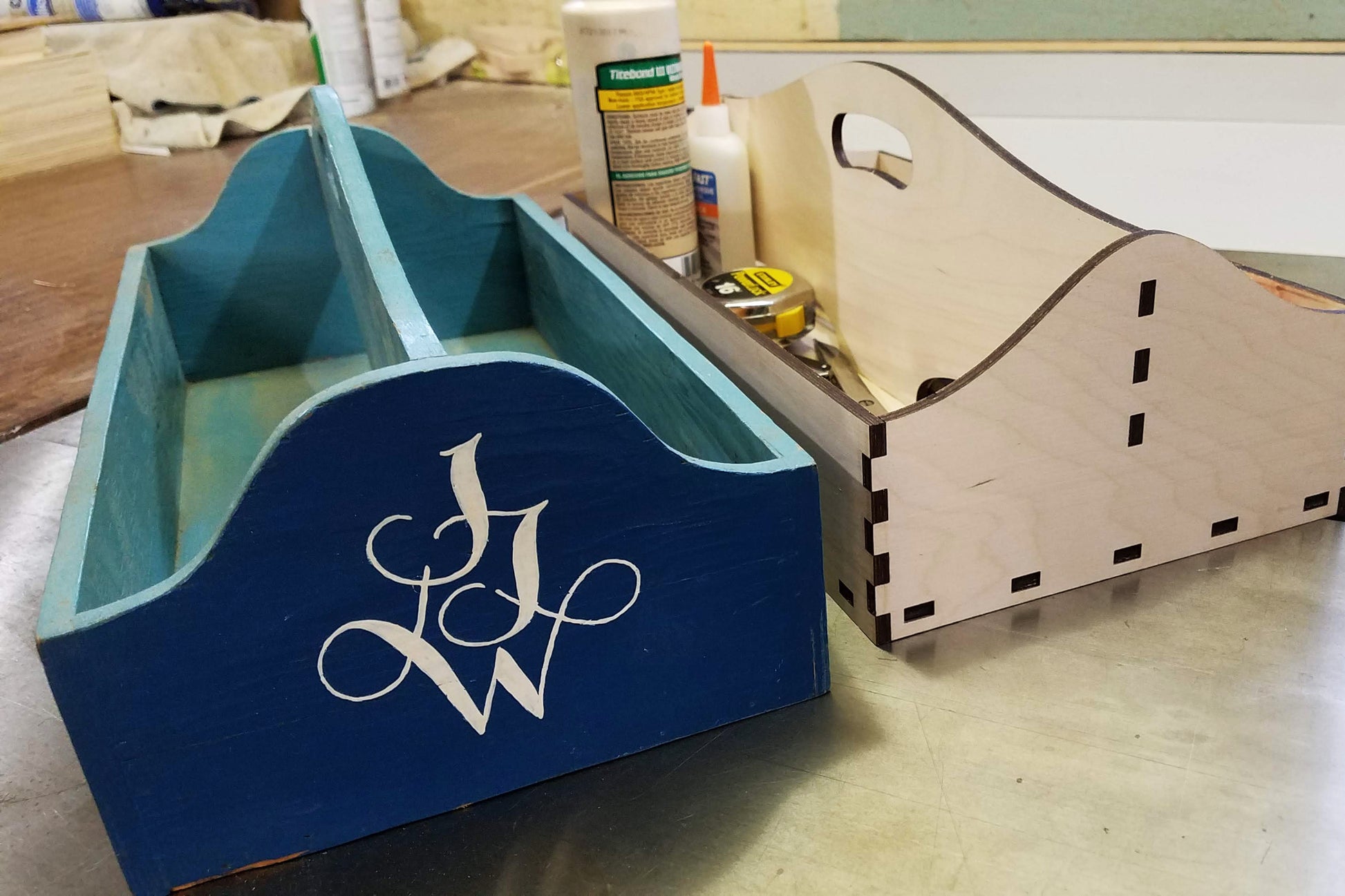

This tool box is designed after a toolbox my grandfather made for me(shown in photos) when I first started getting into woodworking. The overall size and shape are very close to the original and have been modified to in order to be laser cut.
Approx. dimensions: 400mm L x 211mm W x 160mm H
-RED is engrave
-GREEN is 1st cut layer
-BLACK is 2nd cut layer
File is designed in millimeters, for best results set your default import units to millimeters.
You will NOT receive any physical object with this listing, it is strictly digital files for your own use.
Once your payment has been confirmed you will be able to download the files.
You MUST UNZIP the files before using them in any design / cutting software.
If you have any questions, please don't hesitate to contact me, I'm happy to help.
